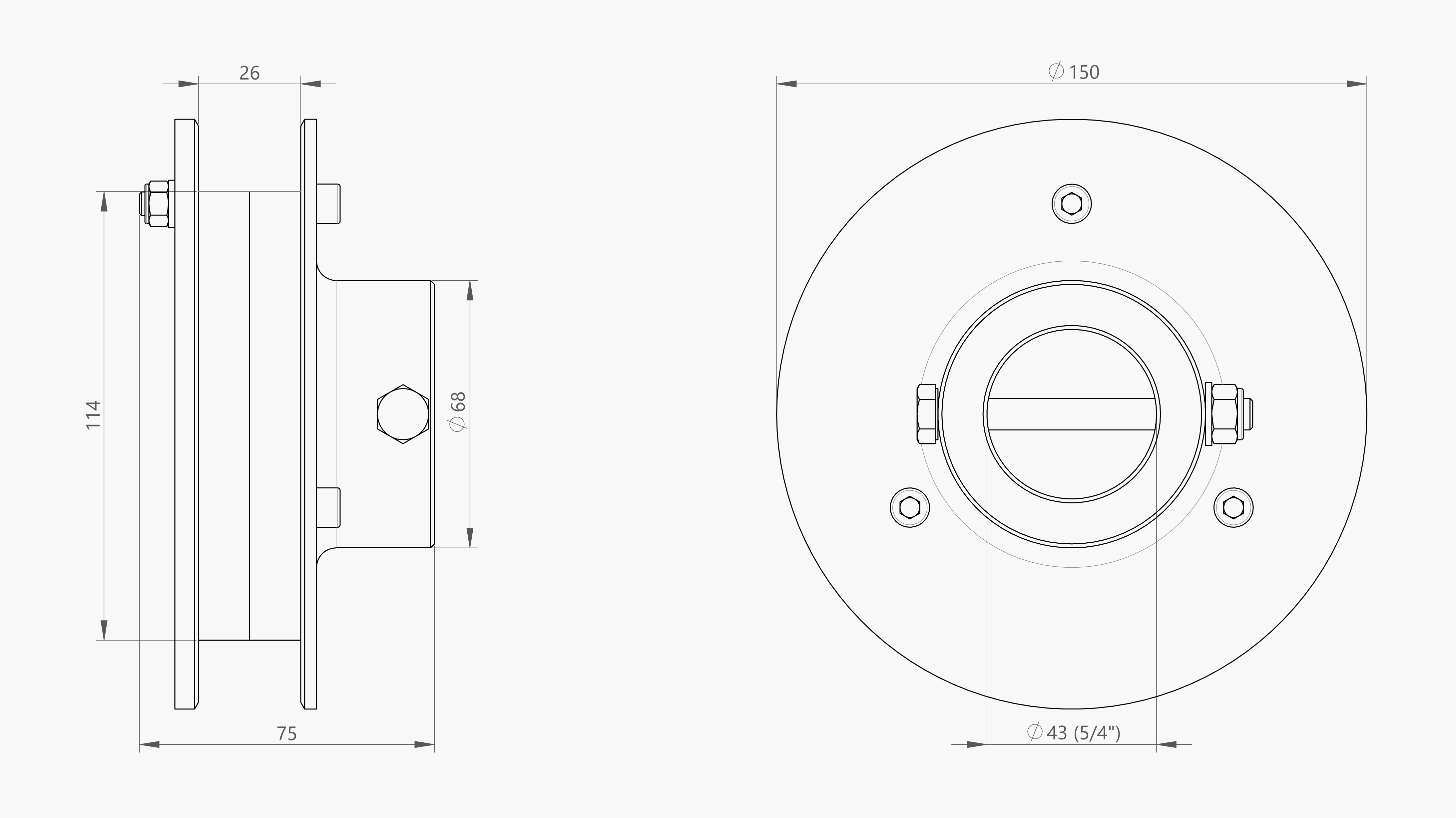

Belt winch drum tube 5/4" W=26
Article properties
Article Information
The belt winch drum tube for winding belts are available as standard in single (LT1) or double winch drum (LT2) with a drum diameter of 114 or 72 mm, respectively. The galvanised steel tyre winder drums are mounted with 2 tension pins on a 5/4" (Ø42.4 mm) drive shaft and supported by 5/4" ball bearing plates. Drive takes place with a GW geared motor fitted with chain couplings. Belt winch drums are used, among other things, for lifting drinking and feeding lines in stables and gable windows for internal transport in covered horticulture.
- Specially for opening gable windows for intern-transport systems.
- Large stroke per revolution allowing fast opening. Efficient and precise winding.
- Belt-friendly machined cheeks.
- Galvanised & robust.
- Easy mounting of strap.
- Simple mounting of drum.
Articles
| Article | Description | m [kg] |
| P.LT1.B.D125.02 | Belt winch drum tube 5/4" W=26 | 1,4 |
General Information
It is possible to place several winch drums on one 5/4” (42.4mm) tube driven by a GW motor gearbox. A variety of winch drums are available, both in single and double version, to be used for cable or belt. The winch drum is suitable for sliding over a 5/4” drive tube. The galvanized winch drum is secured with two spring pins and can be used for hoisting drinking or feeding lines.
